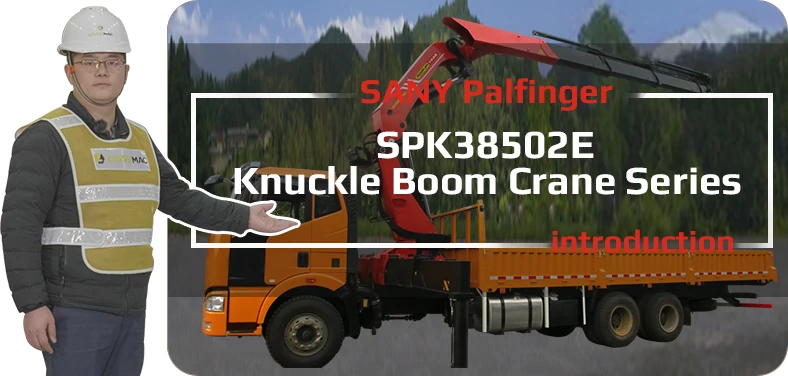

SPK38502E
The Sany Palfinger articulated boom crane SPK38502E series has a powerful lifting moment of 38.2 metric tons and a maximum lifting capacity of 12700 kg, ensuring efficient handling of heavy loads. Its maximum hydraulic outreach of 16.8 meters provides excellent flexibility, while the wide slewing angle of 400° and slewing torque of 5 meters help improve maneuverability. The crane is powered by a hydraulic system with a pump capacity of 55L/min-80L/min and operates at a pressure of 30 MPa for optimal performance. Despite its powerful features, it maintains a compact and manageable weight of 4900kg. The hydraulic outriggers provide a wide span of 6600 mm, ensuring stability and safety during operation.
Stiff Boom Crane Series SPK38502E Application Areas
Construction Site: Used for lifting heavy building materials such as steel beams, concrete slabs, etc. on construction sites.
Ports and logistics: used for lifting, loading and unloading of containers.
Transportation and installation: Widely used in the transportation and installation of large mechanical equipment.
Power and Energy: Used for lifting heavy equipment in power construction projects.
Technical Specifications
| Knuckle Boom Crane Series | SPK38502E |
| Hydr. Boom Extensions | 6 |
| Lifting Moment | 38.2 mt |
| Max. Lifting Capacity | 11340 kg |
| Max. Hydraulic Outreach | 16.8 m |
| Slewing Angle | 400 degree（°） |
| Slewing Torque | 5 mt |
| Pump Capacity | 55 L/min-80 L/min |
| Standard Crane Weight | 4900 kg |
| Operating Pressure | 30 Mpa |
| Lead Time | 15-30 Working Days |
| Payment Terms | T/T ,L/C |
Truck Model | Lifting Moment | Max. Lifting Capacity | Max.Hydraulic Outreach | Operating Pressure |
| SPK38502E | 38.2 mt | 11340 kg | 16.8 m | 30 Mpa |
| —–END—– | ||||
| Main Parameters | ||||
| Knuckle Boom Crane Series | SPK38502E | Hydr. Boom Extensions | 6 | |
| Lifting Moment | 38.2 mt | Max. Lifting Capacity | 11340 kg | |
| Max. Hydraulic Outreach | 16.8 m | Slewing Angle | 400 degree（°） | |
| Slewing Torque | 5 mt | Pump Capacity | 55 L/min-80 L/min | |
| Operating Pressure | 30 Mpa | Standard Crane Weight | 4900 kg | |
| Outrigger span（mm） | ||||
| R1: N/A | R2: N/A | R3X: 6600mm | ||
| —–END—– | ||||
What is the price?
Our prices are determined by many factors, including model, power, product configuration, quantity, price terms (FOB, CIF, CPT, FCA, etc.), etc.
Is there a warranty and how long is it?
We can provide warranty service. The warranty period for different models is different. It depends on the specific situation and can be negotiated.
Is the Price Reasonable?
We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.
How about after-sales service and maintenance?
We provide repair and maintenance services abroad. In addition, we can provide end customers with electronic versions of “Engine Operation and Maintenance Manual”, “Parts Atlas”, “Repair Manual” and other materials, covering the full range of export products, and provide reliable technical guidance for market service training.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
